Docket #: S19-406

Efficient, Dynamic Wireless Power Transfer

Despite widespread adoption of stationary wireless charging, dynamic wireless power transfer suffers from a sensitivity to relative movement of the device with respect to the power source. Researchers in the Fan Group have boosted efficiency to 92% by using a switch-mode amplifier and appropriate feedback with a parity-time symmetric circuit scheme. Efficiency is independent of distance (within 6 feet) and orientation, and limited to losses of the transmit and receive coils. The new lab prototype transmits 10 watts over a distance of 2-3 feet in a few milliseconds – a fraction of the time needed for a car moving at 70 miles an hour to cross a four-foot charging zone - and can be scaled up to supply the 10-100 kilowatts needed for car charging, making the PT-symmetric scheme practical for robust, efficient, 'on-the-go' wireless power transfer.

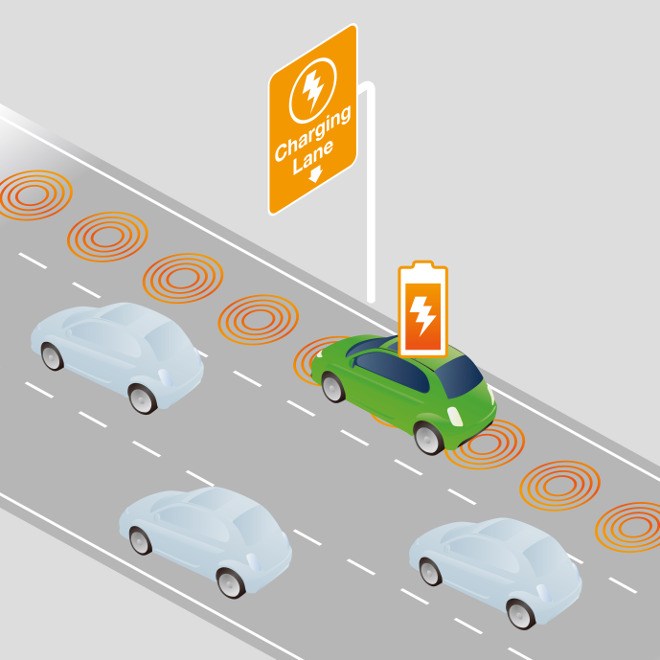

(Image credit: The Fan Group)

Stage of Development – Prototype
Researchers in the Fan group have built and tested a lab prototype that wirelessly transmits 10 watts over a distance of 2-3 feet in a few milliseconds. Research is ongoing.

Applications

  • Dynamic wireless power transfer
    • Electric vehicle charging while in use
    • Portable electronics charging while in use
    • Robotics charging while in use

Advantages

  • High efficiency power transfer – 92%
  • Robust with transfer distance variation
  • More convenient, more productive, reliable, automatic charging and direct wireless power for: mobile phones, handheld devices, printers, displays, robots, cordless tools and instruments.
    • Charging on the go could increase EV effective driving range and EV adoption.
    • Handheld medical instruments, and diagnostic equipment charged on the go, eliminates need for cables, and stationary charging.
    • Increased design flexibility and robustness for thinner, waterproof devices - eliminates failure prone wiring, complex docking and battery replacement.
