Electrochromic Resistive Pressure Sensor

Stanford researchers have developed a stretchable, low power consumption, highly tunable resistive pressure sensor and organic electrochromic device (ECD). This electronic skin detects and distinguishes varying pressure through real-time visible color change. The initial contact surface of the e-skin device is non-conducting, resulting in very low power consumption before applying pressure.

Electrochromic Resistive Pressure Sensor Schematic

Layers of silicone, single walled carbon nanotube electronic devices and electrochromic polymer make up the chameleon-inspired skin. Applying pressure can control the skin color, or skin color change can identify applied pressure.

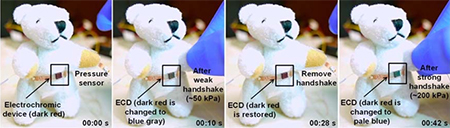

Sequential images of a teddy bear demonstrate pressure variations via color changes.
The original color of the sensor changes from dark red to blue gray with a weak squeeze (applied pressure ~50 kPa) and reverts back to dark red upon release. The color changes to pale blue with a strong squeeze (applied pressure ~200 kPa).

This low power, electrochromic e-skin pressure sensor can be applied in areas such as robotics, prosthetics, healthcare, and hand held devices.
