Mechanically Tunable Metasurface for Optical Modulation, Beam Steering

Researchers at Stanford have developed a tunable metasurface with high reflectance and large phase modulation for use as optical phase modulators or beam steering device (Lidar). Currently, the large size of beam steering devices is a critical problem. Tunable metasurfaces are promising candidates for on-chip (compact) beam steering, but low efficiency (reflectance) has been a problem. The new design can provide much higher reflectance compared to previous ITO-based tunable metasurfaces. It comprises a metal reflector and multiple metal nano-beams with an adjustable air gap in between. By adjusting the gap distance between metal antenna and reflector, resonance behavior of the antenna can be dramatically changed, resulting in the large phase (or amplitude) modulation of the beam reflected from the metasurface.

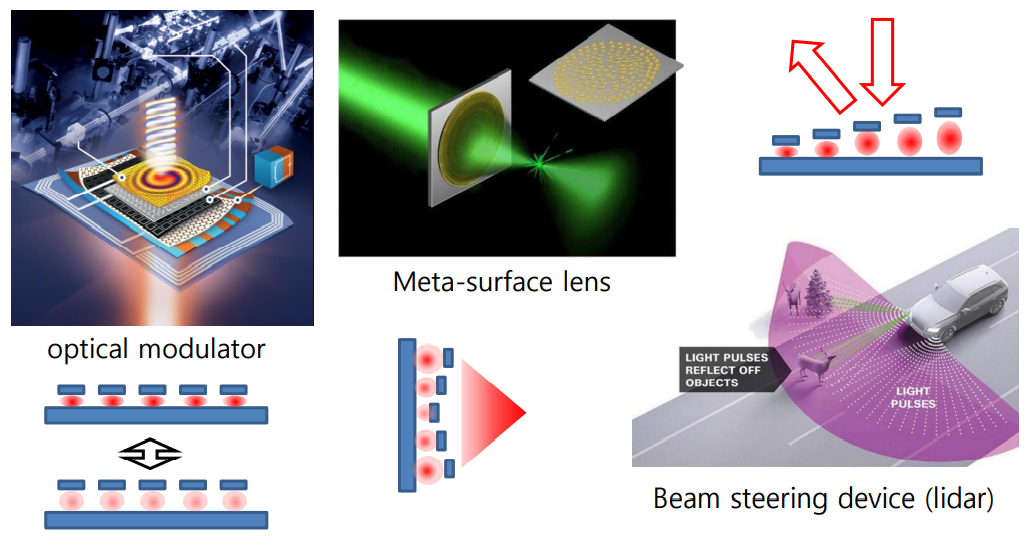

Applications of the novel metasurface technology (image credit: the inventors)
