Compact Power And Thruster System for Small Satellites

Engineers from Stanford and the Australian National University have developed a robust micro electric propulsion system to maneuver miniature satellites (CubeSats) and thereby extend their lifetime. Currently, most small Low Earth Orbit satellites do not have propulsion because they are not large enough for the conventional power electronics needed to drive micro-thrusters. This leaves them vulnerable to atmospheric drag and poor orbit position which limits their lifespan to 6-12 months.

This invention solves that problem by integrating the power supply into the structure of the satellite itself. Specifically, the electrical components of a dc to ac RF power converter are embedded inside a printed circuit board (PCB) where an electro-thermal plasma ion micro thruster is mounted. The resulting rigid PCB is mechanically strong enough to serve as a side panel of the satellite, leaving space inside the CubeSat available for propellant or instrument payload.

The PCB-integrated thruster can be used for orbital maneuvering and station keeping to extend the lifespan of small satellites such as CubeSats used for as communication, earth imaging and interplanetary mining.

Stage of Research

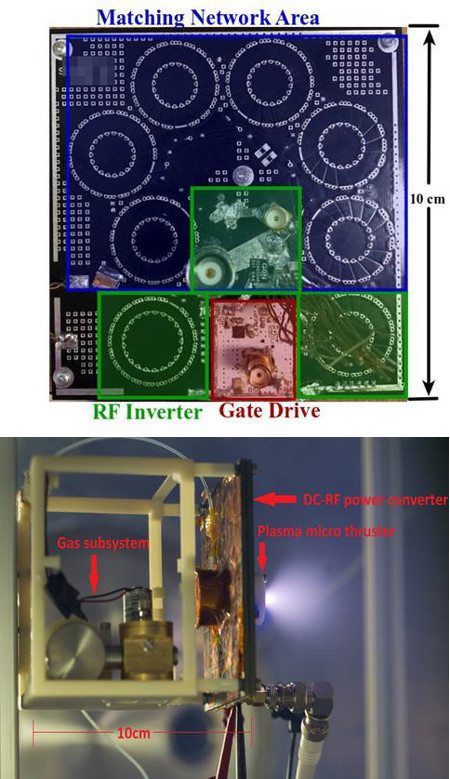

The inventors have created a prototype power board (13.8 MHz 14V input 15 W RF power inverter) with PCB inductors and demonstrated its ability to power the miniPR 3.0 inside a vacuum chamber. Proof of concept experiments verified: no parasitic discharge; high voltage gain (14 Vdc to 600 VRF); and up to 90% efficiency (12W load power) under pulsed operation.
