Denoising WaveY-Net: An ultra-fast, auxiliary neural network enhanced surrogate field solver

The Fan Lab at Stanford University has developed an ultra-fast, physics-augmented, deep learning enhanced surrogate field solver for high-speed electromagnetic simulation and optimization. Denoising WaveY-Net uses a two-stage approach to target different field error sources. The conditioned surrogate solver architecture also uses a two-stage approach to generate fullwave field solutions for a given dielectric structure. The solver generates a solution for a given set of parameters, such as wavelength of illumination, angle of incident light, polarization, and material permittivity. Denoising WaveY-Net consistently optimizes topology greater than three orders-of-magnitude faster than a finite-difference frequency-domain (FDFD) solver. Adding physics into the training process qualitatively improves outcomes beyond those obtained by adding more training data. This ultra-fast and accurate field solver can save time and money for a wide range of design and modelling applications including meta-optical devices, photonics integrated circuits, RF components, additive manufacturing, and computational fluid dynamics.

(Image courtesy the Fan Lab)

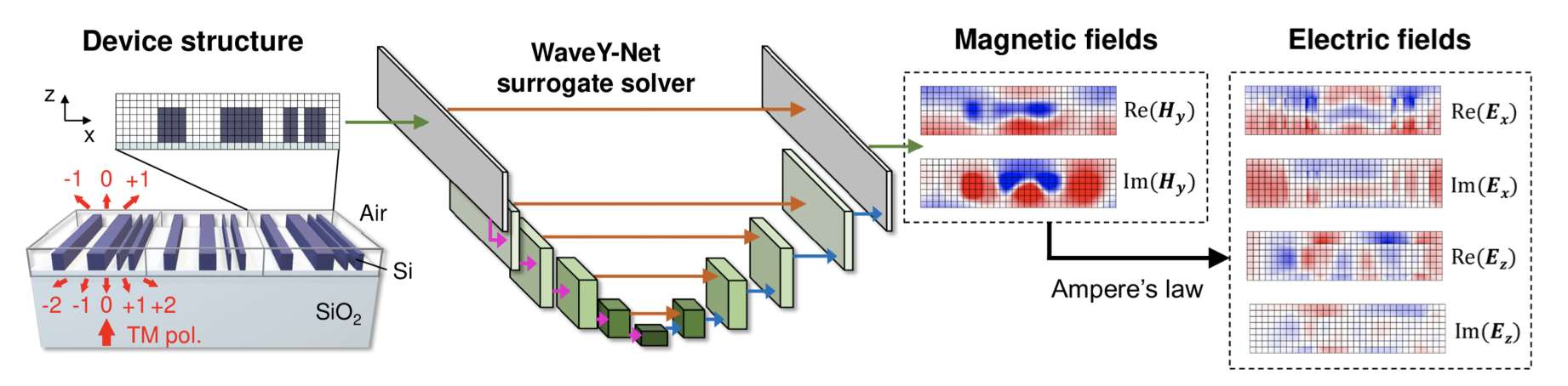

Figure 1 Schematic of a metagrating EM field evaluation with Denoising WaveY-Net. The device layout is used as the input image for the neural network, which predicts the real and imaginary part of the magnetic field Hy, which is then used to calculate the electric field components.

Stage of Development – Prototype
